Havok FPV Tilt-Rotor VTOL Kit
$175.00
The Havok is a compact, 3D-printed tilt-rotor FPV drone designed for agility and pure flying fun. It combines a powerful 4S propulsion system — typical of racing and freestyle quads — with a unique tandem tilt-rotor configuration to deliver exceptional performance in a compact platform.
- Wingspan: 550mm
- Flight time: 15 minutes
- Weight: 845g
- Payload: Analog or HD PFV system (optional), up to 60g
- STL files for 3D printing the full airframe
- Havok custom mixer board
- Servos
- Complete hardware pack: carbon tubes, pushrods, fasteners, etc.
- Custom tilt mechanism parts
- Betaflight configuration files
- Assembly documentation
- STL and mixer firmware updates
- Access to the PolyMAV Discord group
- Instant access to the Havok VTOL Simulator!
- Motors: 2205 2300KV brushless motors (for example, RS2205)
- Propellers: 5045 3-blade
- FC / ESC stack: Any 30x30 FC stack with 45A (or higher) 4-in-1 ESC, and at least 1 pad that can be assigned as PWM output (for example, SoloGood F722)
- Batteries: 4S 1500mAh ~100C LiPo, battery length must be no more than 80mm
- Transmitter / receiver: The transmitter must have a side slider you can use to control tilt during flight while keeping your thumbs on the flight sticks. (for example, RadioMaster Pocket)
- FPV system: Analog or HD FPV system, up to 60g
- 3D printer and filament: Foaming filaments can be used for certain parts, but the main body needs to be PC-CF, ASA, or ABS. The largest part to be printed is 7.5 × 4 × 4 inches.
Overview
The Havok is a compact, 3D-printed tilt-rotor FPV drone designed for agility and pure flying fun. It combines a powerful 4S propulsion system — typical of racing and freestyle quads — with a unique tandem tilt-rotor configuration to deliver exceptional performance in a compact platform.
At the heart of the system is a custom mixer board that provides fully proportional tilt control, allowing you to fly at any tilt angle and make the most of whatever space you have available. The result is a thrilling and versatile flight experience — whether you’re carving the sky like a high-energy sport plane or enjoying a dynamic FPV platform built for exploration and excitement.
You can print your own Havok using your own 3D printer, and get it quickly in the air using the hardware included in your Havok VTOL Kit.

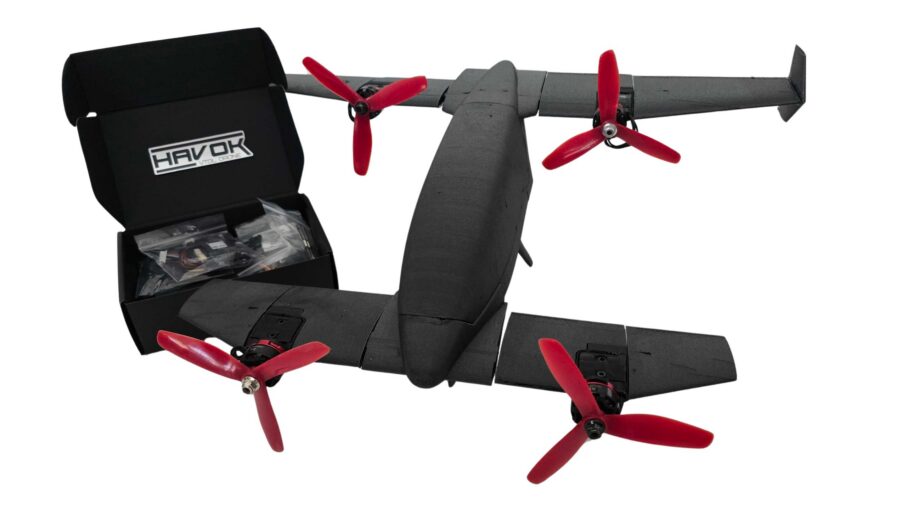

This kit includes the Havok mixer board, and all the custom hardware required to assemble the drone, along with the STL files needed to 3D print the airframe. The printed airframe and all standard electronics (including motors, ESCs, flight controller, battery, propellers, and other off-the-shelf components) are not included (See the Required Hardware section for details)

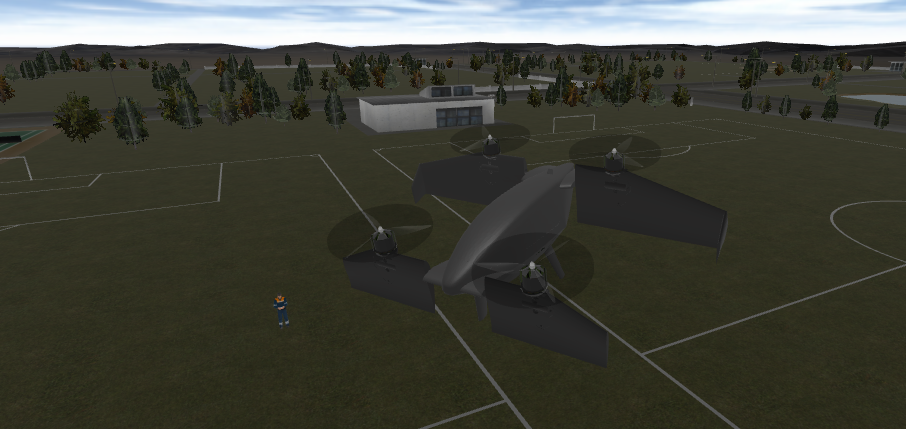

Plus, you will get instant access to the Havok VTOL Simulator, where you can get acquainted with how to fly your aircraft using your own RC transmitter!
